Custom T Section Steel and Laser Cut Parts
Tangshan Yumai Metal Products Co., Ltd. offers T section steel and custom laser-cut components with round holes, oblong slots, open notches and shaped contours. Cut lengths and hole layouts can be specified to suit your drawings.

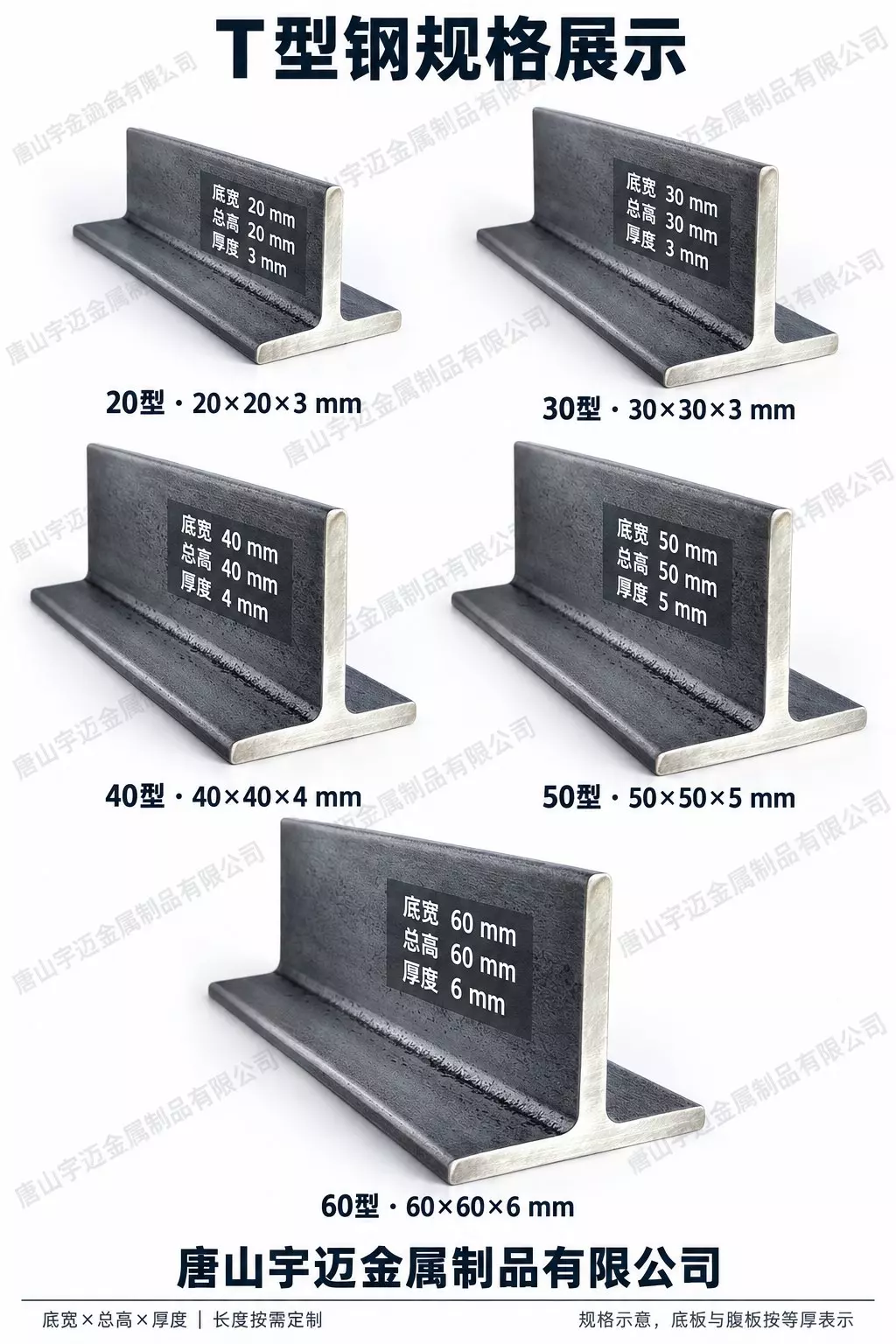

Cross-section specifications
Dimensions below are base width × overall height × thickness, in millimetres. The flange and web are shown with equal nominal thickness.
| Model | Width | Height | Thickness |
|---|---|---|---|
| 20 | 20 mm | 20 mm | 3 mm |
| 30 | 30 mm | 30 mm | 3 mm |
| 40 | 40 mm | 40 mm | 4 mm |
| 50 | 50 mm | 50 mm | 5 mm |
| 60 | 60 mm | 60 mm | 6 mm |
Custom laser processing
- Cut-to-length T section components
- Round mounting holes and oblong adjustment slots
- Semicircular, U-shaped and stepped open notches
- Custom windows, cutouts and shaped edges
Potential applications include machinery mounting parts, support brackets, equipment frames and positioning fixtures. Final geometry, material grade, tolerances and finish should be specified in the agreed production drawing.
Ordering information
Price: USD 700–800 per metric tonne.
Minimum order: 1 metric tonne (1000 kg).
Delivery time: 10 days.
For a quotation, provide the required section, cut length, hole size and spacing, cutout drawing, quantity, material grade and surface finish.
The images are illustrative designs. Hole positions and shaped contours are examples, not production drawings. Cross-section dimensions refer to the original section before cutting.
